Process Hierarchy

on front
  Niobium Titanium Oxide (NTO) deposition
Process characteristics:
Thickness of material to be deposited.
Thickness of material to be deposited., must be 0 .. 0.1 µm
0 .. 0.1 µm
Batch size 1
Material NTO
Sides processed either
Wafer size
Wafer size
Equipment Sputter tool
  • 125mm, 156mm pseudosquare substrates are ok.
    300mm square substrates are ok as well.
Equipment characteristics:
Wafer geometry
Types of wafers this equipment can accept
1-flat, 2-flat, notched, no-flat
Wafer thickness
List or range of wafer thicknesses the tool can accept
150 .. 1000 µm
  • Composition:
    95 wt% TiO2 5 wt% Nb2O5
  • The sheet resistance of the as-deposited NTO films is extremely high, ~500 kOhms/sq for a 70 nm film. Deposition rates for NTO are very low. We are currently not offering NTO films thicker than 100 nm.
attached by ozgur (Mehmet Ozgur) on 2010-08-06 11:36

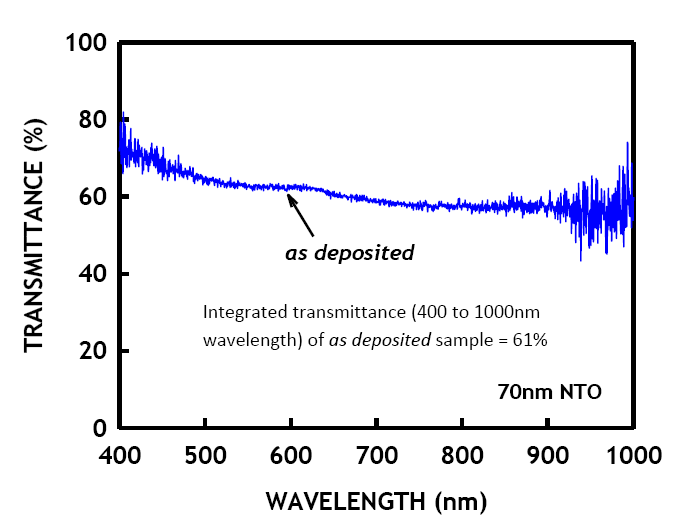

NTO optical transmittance
