  PiezoMEMS - PZT based Actuator/Transducer module (Multi-Project-Run)
Batch size 20
Material PZT
Thickness 0 .. 1 µm
Wafer diameter(s)
List or range of wafer diameters the tool can accept
 150 mm
Wafer size
Wafer size
Comments:
  • Piezoelectric material: PZT (52/48)
  • Multi-project runs are shared runs. Several projects are run on the same wafer.
  • A full fabrication process enabling the creation of PZT thin film capacitors, actuators, and transducers.
  • Includes air bridge process to reduce parasitic capacitances
  • Customer to supply CAD layout for 7.5x7.5mm die
    Note – Full layout is updated twice annually
  • Build schedule 8-12 weeks
  • Process runs on regular interval for process qualification with the number of wafers completing the full process in excess of 4 per design cycle

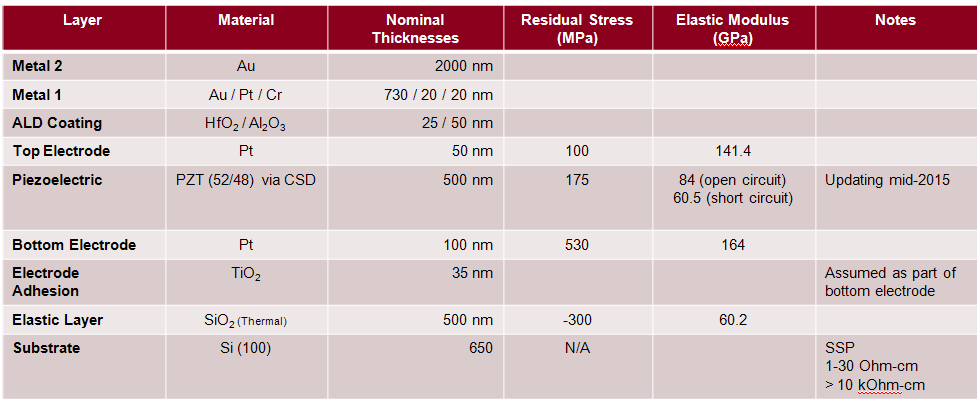

  • See attached table for material properties.

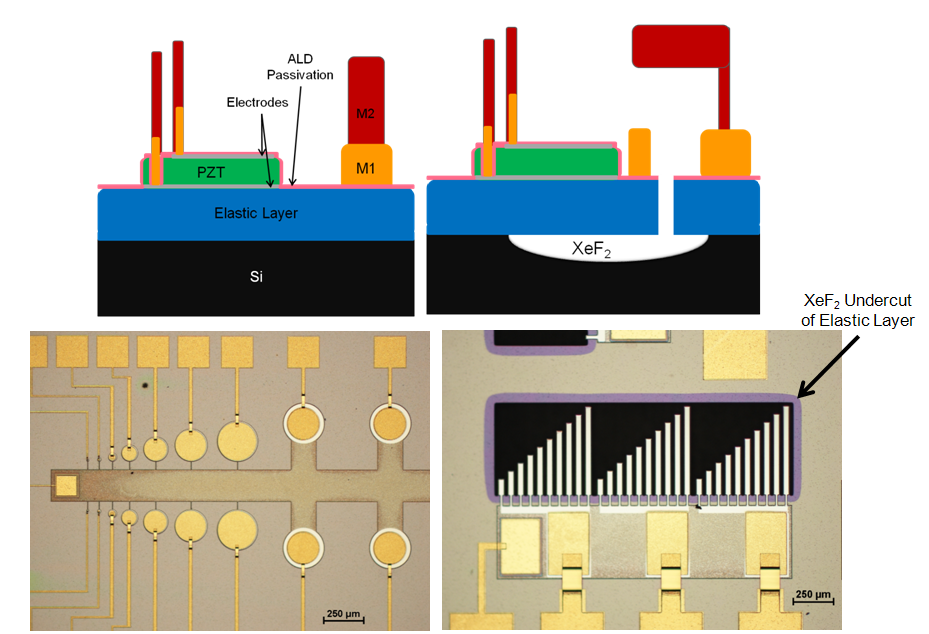

  • The cross-sectional view illustrates the completed device geometries.
  • Please contact for additional information and a quote.
